Intelligent Bipolar Power Supply
PBZ Series
Intelligent power supply providing arbitrary waveform generation and accurate power simulation!
- Rated Power:400 to 4000 W
- Rated Voltage:20/40/60/80 V



Product Overview

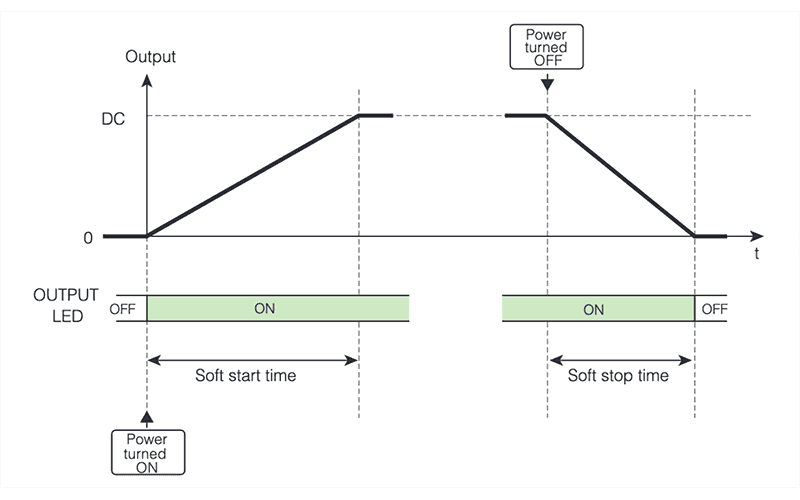

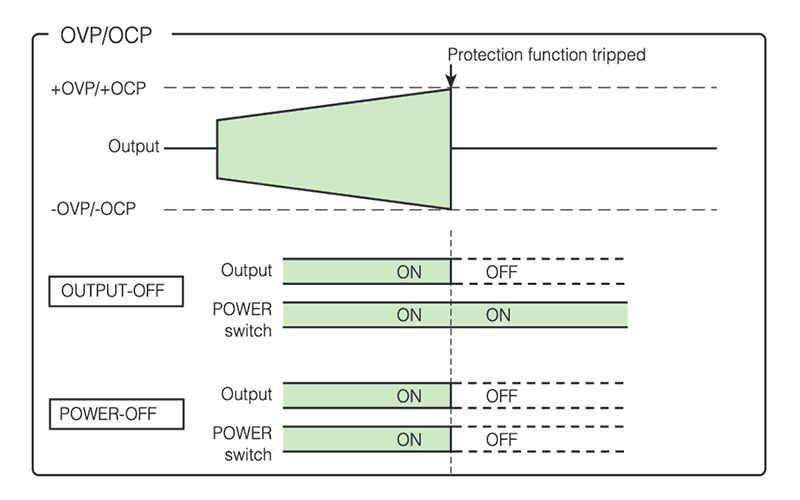

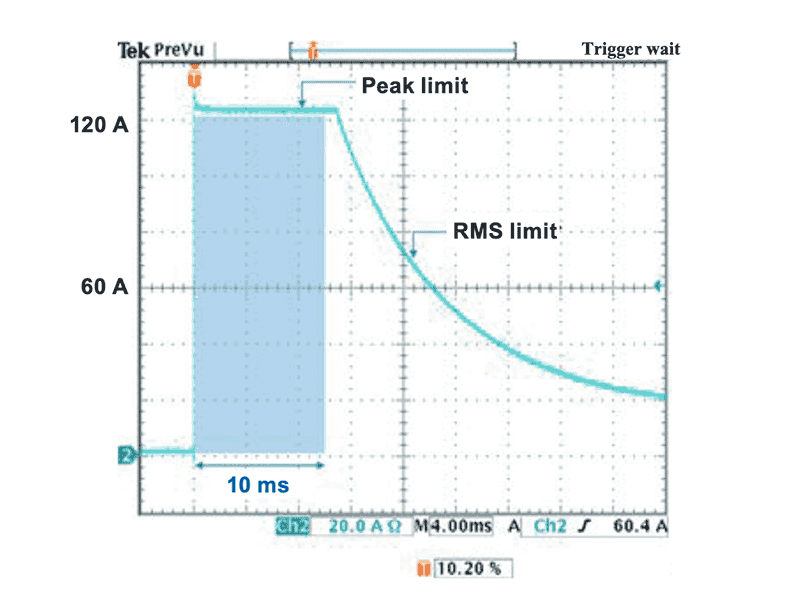

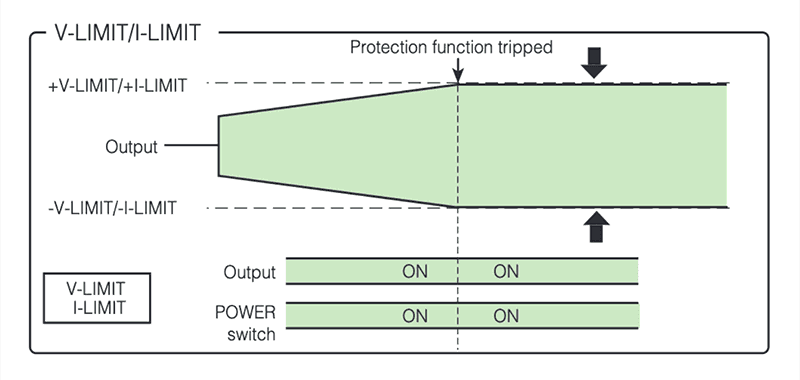

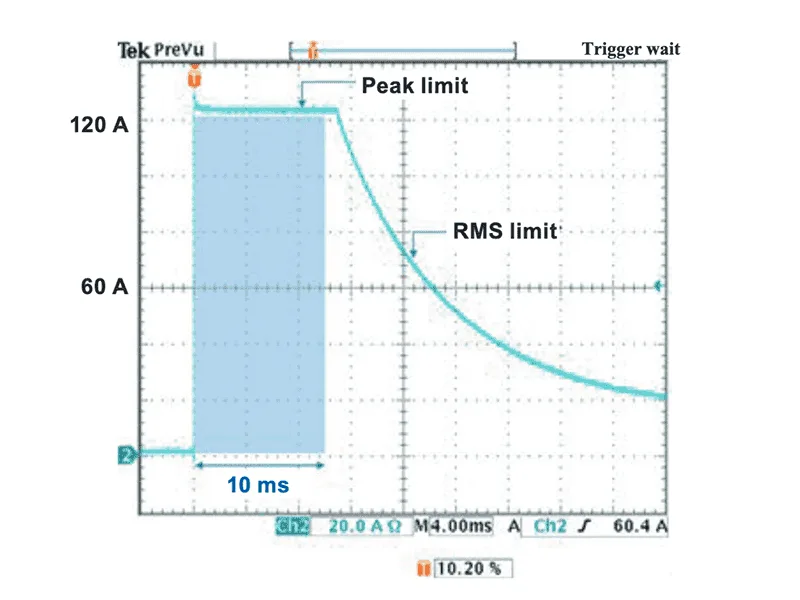

7 new features for optimum test simulation!
The PBZ is a series of bipolar DC programmable power supplies that can smoothly pass through zero to provide ± voltage and ± current without changing the output terminals. The PBZ is capable of 4-quadrant operation, meaning that it is capable of both sourcing and sinking power, ideal for driving both inductive and capacitive loads. This power supply comes equipped with a built-in function generator, allowing for easy waveform and sequence generation.
The output current of the PBZ can be expanded among multiple units by using the synchronization feature. The switching + linear design of the PBZ has allowed for a 40% reduction in weight (approx. 22 kg) while achieving extremely high-speed operation (CV mode: 100 kHz) and low ripple noise.
Specifications
PBZ
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-20 | ±20 | ±20 | 2 mV/20 mV(TYP) | 3mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 100 to 240 | 10 (max) |
| PBZ40-10 | ±40 | ±10 | 4 mV/20 mV(TYP) | |||||||
| PBZ60-6.7 | ±60 | ±6.7 | 4 mV/30 mV(TYP) | |||||||
| PBZ80-5 | ±80 | ±5 | ||||||||
PBZ20-20A
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-20A | ±20 | ±20 | 2 mV/20 mV(TYP) | 3mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 100 to 240 | 10 (max) |
PBZ SR

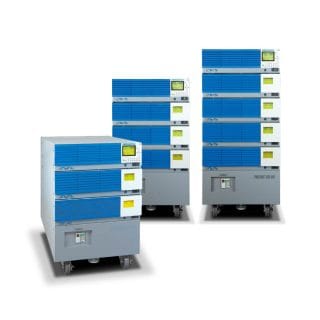

Three parallel type
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-60 SR | ±20 | ±60 | 3 mV/30 mV(TYP) | 5mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 200 to 240 Single phase | 15A (max) |
| PBZ40-30 SR | ±40 | ±30 | 6 mV/30 mV(TYP) | |||||||
| PBZ60-20.1 SR | ±60 | ±20.1 | 6 mV/40 mV(TYP) | |||||||
| PBZ80-15 SR | ±80 | ±15 | ||||||||
Four parallel type
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-80 SR | ±20 | ±80 | 3 mV/30 mV(TYP) | 5mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 200 to 240 Single phase | 20A (max) |
| PBZ40-40 SR | ±40 | ±40 | 6 mV/30 mV(TYP) | |||||||
| PBZ60-26.8 SR | ±60 | ±26.8 | 6 mV/40 mV(TYP) | |||||||
| PBZ80-20 SR | ±80 | ±20 | ||||||||
Five parallel type
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-100 SR | ±20 | ±100 | 3 mV/30 mV(TYP) | 5mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 200 to 240 Single phase | 25A (max) |
| PBZ40-50 SR | ±40 | ±50 | 6 mV/30 mV(TYP) | |||||||
| PBZ60-33.5 SR | ±60 | ±33.5 | 6 mV/40 mV(TYP) | |||||||
| PBZ80-25 SR | ±80 | ±25 | ||||||||
PBZ BP
Six parallel type
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-120 BP | ±20 | ±120 | 6 mV / 50 mV (TYP) | 10mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 200 to 240 Single phase | 30 (max) |
| PBZ40-60 BP | ±40 | ±60 | 12 mV / 50 mV (TYP) | |||||||
Seven parallel type
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-140 BP | ±20 | ±140 | 6 mV / 50 mV (TYP) | 10mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 200 to 240 Single phase | 35 (max) |
| PBZ40-70 BP | ±40 | ±70 | 12 mV / 50 mV (TYP) | |||||||
Eight parallel type
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-160 BP | ±20 | ±160 | 6 mV / 50 mV (TYP) | 10mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 200 to 240 Single phase | 40 (max) |
| PBZ40-80 BP | ±40 | ±80 | 12 mV / 50 mV (TYP) | |||||||
Nine parallel type
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-180 BP | ±20 | ±180 | 6 mV / 50 mV (TYP) | 10mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 200 to 240 Single phase | 45 (max) |
| PBZ40-90 BP | ±40 | ±90 | 12 mV / 50 mV (TYP) | |||||||
Ten parallel type
| Specifications | Output | Ripple noise | Line regulation | Load regulation | AC input | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | CV | CC | CV | CC | CV | CC | CV | CC | Nominal Voltage | Current |
| V | A | rms/p-p | rms | mV | mA | mV | mA | V | A | |
| PBZ20-200 BP | ±20 | ±200 | 6 mV / 50 mV (TYP) | 10mA (TYP) | ±0.005%+1 | ±0.01%+1 | ±0.005%+1 | ±0.01%+1 | 200 Single phase | 50 (max) |
| PBZ40-100 BP | ±40 | ±100 | 12 mV / 50 mV (TYP) | |||||||
Lineup
Options

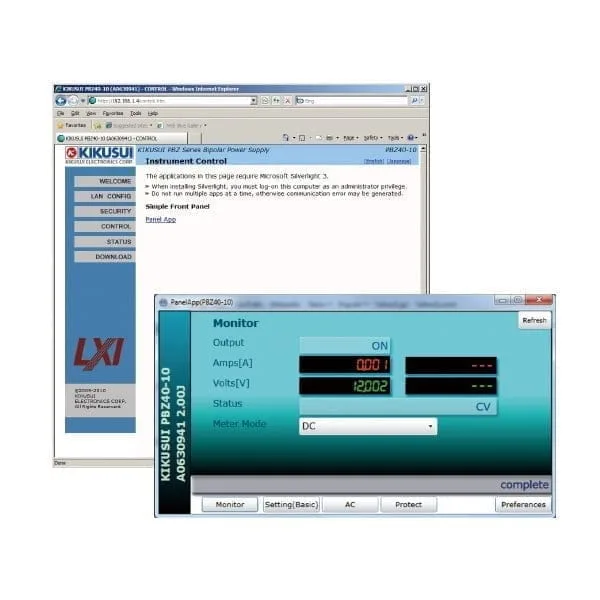

Communication interface
